TECH NOTES

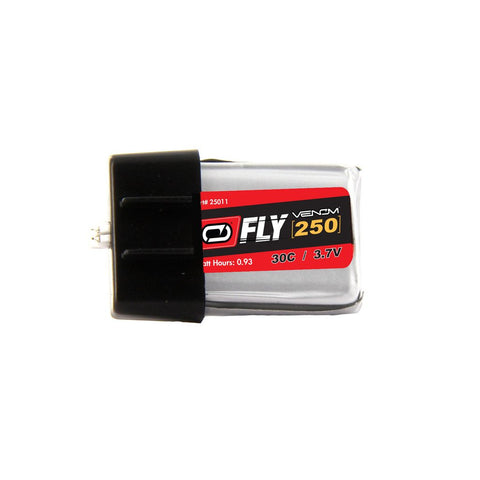

              This is the Venom LiPo 1S 3.7V 250mAh 30C Battery
                    with the E-Flite Blade MCX Connector.

FEATURES: JST-MCX plug matches many Blade, E-Flite UMX, and popular micro and
            ultra micro airframes
          "A" grade matched cells
          5C charge capable

INCLUDES: One LiPo 1S 3.7V 250mAh 30C Battery with MCX Plug

SPECS:    Dimensions: 1.3 x 0.8 x 0.4" (33 x 20 x 9mm)
          Weight: 0.3oz (8.1g)
          Plug Type: E-Flite Blade MCX
          Configuration: 1S
          Charge Rate: 1C (0.25A)
          Max Approved Charge Rate: 5C (1.25A)
          Continuous Discharge: 30C (7.5A)
          Max Burst Rate: 60C (15A)
          Max Volts Per Cell: 4.2V
          Max Volts Per Pack: 4.2V
          Min Volts Per Pack: 3V
          Watt Hours: 0.93

COMMENTS: ALWAYS use a LiPo-approved charger/balancer
          NEVER Charge over 4.20V per cell
          NEVER Trickle Charge
          NEVER allow to Discharge below 2.5V per cell
          NEVER disassemble or modify pack wiring in any way or puncture cells
          NEVER place on combustible materials or leave unattended during
            Charging
          ALWAYS charge in a fireproof location
          ALWAYS keep out of reach of children

                                                                   jxs 11/11/15
                                                                         ir/jxs

BOX DIMENSIONS:    4.38" W. X   1.00" H. X   6.75" L.
BOX WEIGHT:     .09 LBS.
